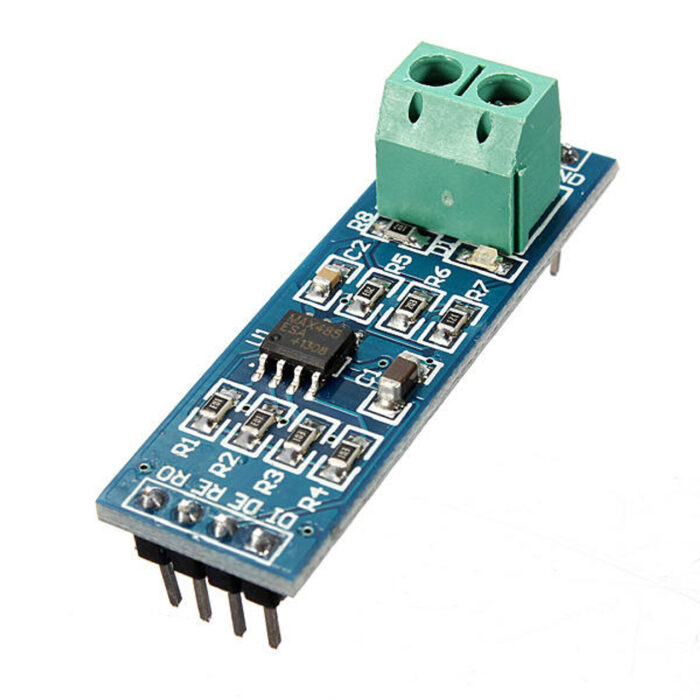

MAX485 TTL to RS485 Converter Module

Key Features

• RS485 Communication: Uses the RS485 standard for robust, long-distance, noise-resistant communication, making it suitable for industrial and noisy environments.
• TTL Interface: Converts between TTL (Transistor-Transistor Logic) and RS485 signals, allowing easy connection to microcontrollers like Arduino, ESP8266, Raspberry Pi, and other TTL-compatible devices.
• Half-Duplex Communication: Supports half-duplex (one-way communication at a time), enabling efficient data transmission and reception over a single pair of wires.
• High-Speed Transmission: Capable of transmitting data at rates up to 2.5 Mbps over shorter distances, with reduced rates over long distances.
• Low Power Consumption: The MAX485 IC has low power consumption, which is ideal for low-power applications and battery-operated devices.
• Compact Design: Small size makes it easy to integrate into a variety of applications and systems.
• Simple Connection: Includes screw terminals for easy wire connections, and standard headers for TTL connections.

Specifications

• Chipset: MAX485
• Communication Standard: RS485
• Operating Voltage: 5V
• Data Rate: Up to 2.5 Mbps (for short distances), reduced rates for longer distances
• Transmission Range: Up to 1.2 km (depending on data rate and cable quality)
• Interface: TTL for microcontroller connection, RS485 for communication line
• I/O Pins: DI (data in), RO (receive out), DE (driver enable), RE (receiver enable)
• Dimensions: Compact design, typically around 44mm x 14mm

Applications

• Industrial Automation: Ideal for establishing communication between controllers, sensors, and actuators over long distances in noisy environments.
• Home Automation: Useful for creating a wired communication network in smart homes where reliable data transmission is crucial.
• IoT Systems: Suitable for IoT applications where long-distance, reliable communication between sensors and controllers is needed.
• Embedded Systems: Commonly used in embedded applications that require noise-resistant communication, such as monitoring systems and data acquisition.
• Security Systems: Used in security applications, such as connecting surveillance cameras, access controls, and alarm systems.
• Remote Monitoring: Perfect for remote monitoring projects where data needs to be transferred reliably over long distances.

Benefits

• Reliable Long-Distance Communication: RS485 communication enables stable data transfer over distances up to 1.2 km, making it ideal for distributed systems.
• Noise-Resistant: RS485 is resistant to noise and interference, providing reliable communication in industrial or electrically noisy environments.
• Easy Integration: The TTL interface simplifies connection to most microcontrollers, allowing seamless integration with Arduino, Raspberry Pi, and other boards.
• Low Power Consumption: Efficient design and low power draw make it suitable for battery-operated and low-power applications.
• Compact and Simple to Use: The module’s small footprint and simple wiring make it ideal for both hobbyists and professional projects.

How to Use the MAX485 TTL to RS485 Converter Module

1. Power the Module: Connect the module’s VCC to a 5V power source and GND to ground.
2. Connect TTL Interface to Microcontroller:
   • DI (Data In): Connect to the microcontroller’s TX pin.
   • RO (Receive Out): Connect to the microcontroller’s RX pin.
   • DE (Driver Enable) and RE (Receiver Enable): Control these pins to switch between transmit and receive modes. Pull both high for transmission and both low for receiving.
3. Connect RS485 Wires: Use the A and B terminals to connect RS485 communication lines for long-distance communication.
4. Program the Microcontroller: Use an appropriate library or serial communication commands to manage data transfer via the RS485 protocol.

Package Includes:

• 1 x MAX485 TTL to RS485 Converter Module
